Orca
Board-mounted power amplifier modules
The Orca series is a family of isolated DC/DC, fully regulated, board-mounted power amplifier modules. The series is designed to significantly lower costs and boost energy efficiency for cellular base stations, remote radio heads, distributed antenna systems and WiMAX controllers.
- Compliant to RoHS EU Directive 2002/95/EC.
- High power density: 166W/in3 in half-brick, 139W/in3 in an eighth-brick footprint.
- Industry-standard half-brick and eighth-brick pin-out.
- Low output ripple and noise.
- Remote sense.
- Constant switching frequency.
- Overtemperature protection; auto restart.
- Vout adjustment trim, 16VDC to 35.2VDC in half-brick, 15VDC to 35.2VDC in eighth-brick.
- Operating case temperature of -40C to 100 C.
- CE mark meets 2006/95/EC directives.
- UL60950-1, CSA C22.2 No. 60950-1-03(CSAUS) and VDE 0805:2001-12 (EN60950-1).
OmniOn Power, formerly ABB Power Conversion, stands for highly reliable power solutions ("critical power").
The Embedded Power range offers high performance industrial power supplies, whether as classic power supplies or DC/DC converters for on-board solutions, isolating DC/DC and non-isolating POLs.

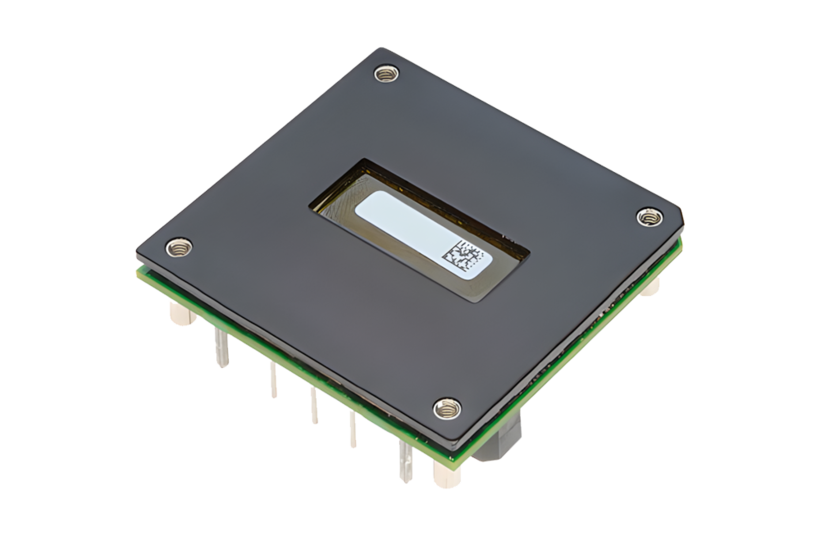

Orca Series Half Brick Modules
MODEL INPUT VOLTAGE OUTPUT VOLTAGE OUTPUT CURRENT EFFICIENCY
JRCW016A0R 48V (36-75V) 28V 16A 94%
JNCW016A0R 48V (36-75V) 28V 16A 94%
JRCW450R 48V (36-75V) 32V 14A 94%
JRCK017A0R 48V (36-60V) 32V 17A 95%
JRCW450U 48V (36-75V) 48V 9.4A 94%
Orca Series Eighth Brick Modules
MODEL INPUT VOLTAGE OUTPUT VOLTAGE OUTPUT CURRENT EFFICIENCY
ERCW003A6R 48V (36-75V) 28V 3.6A 93%
