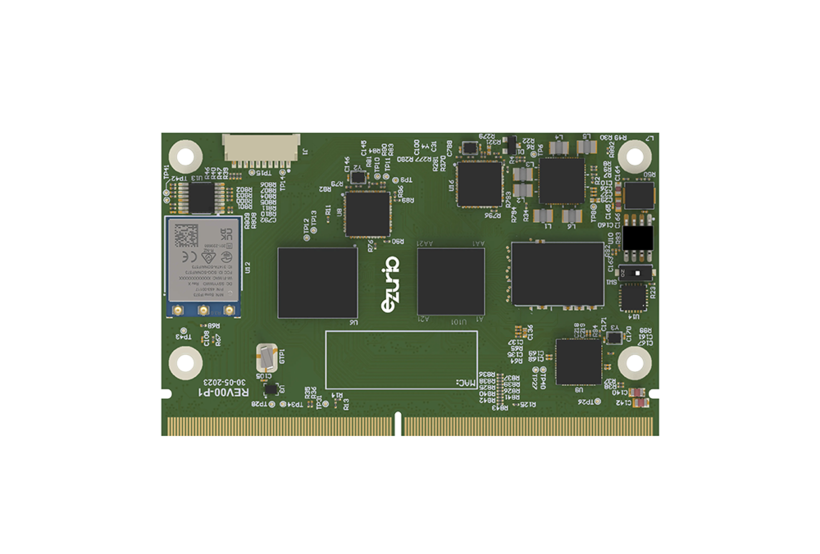

Nitrogen93 SMARC
System-On-Module with i.MX 9 Series
The new Nitrogen93 is powered by NXP’s next generation i.MX 93 processor, NXP PMIC PCA9451A, and the Sona NX611 Wi-Fi 6 / Bluetooth 5.3 radio based on NXP’s IW611, high performance LPDDR4 RAM, and eMMC storage. It is combined this with a common SMARC carrier board; together they serve as a single board computer (SBC) that can speed your product to market.
- Chipset (MPU): 2x Cortex®-A55 cores @ 1.7 GHz (NXP i.MX 93)
- Chipset (MCU): 1x Cortex®-M33 core @ 250 MHz (NXP i.MX 93)
- Dimensions (L x W): 82 x 50
- Wireless Specification: Wi-Fi 6 (802.11ax) and Bluetooth 5.3
- Additional Features: 2D Accelerator, 1 TOPS NPU
- Antenna Options: MHF4 connector for external antenna
- Interfaces - General
- USB 2.0, Gbit Ethernet, CAN/CAN-FD, UART, I2C, SPI, SDIO/eMMC, GPIO
- MIPI-CSI, MIPI-DSI
- Audio via I2S
- Memory
- 2 or 4 GB LPDDR4 RAM
- 16 GB eMMC
- Operating Temp (°C): -40 °C - +85 °C
- Region: FCC, IC, CE, UKCA, RCM, MIC, KC (pending)
