Name: CRTtoLCD-71-LP
Brand: eCount embedded
SKU: 6719
Availability: InStock

Search website:

Related links

Wishlist

Your wishlist is empty

ProductsDisplays and TouchscreensDisplay TechnologyTFT Controller+CRTtoLCD-71-LP

Request infos

Wishlist

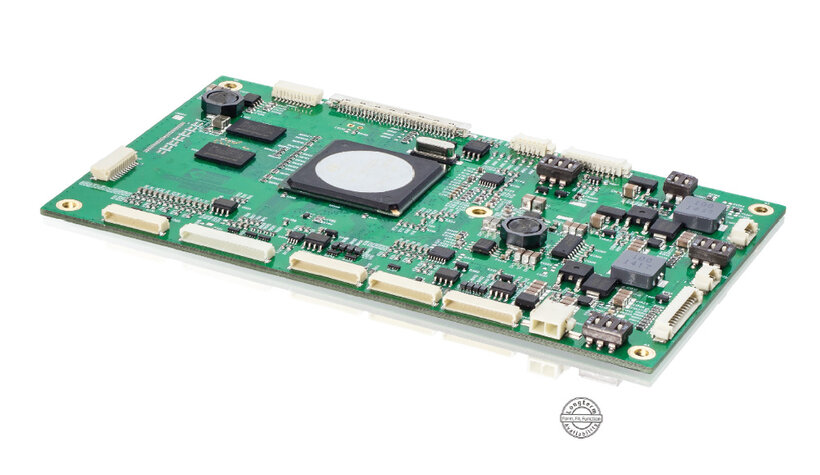

Der CRTtoLCD-71-LP ist ein Low-Profile-Flatpanel -Controller zum einfachen Anschluss von analog RGB, DVI, Displayport, Composite-Video, S-Video und Component-Video-Quellen an einen LCD. Der Multi-Standard-Video-Decoder unterstützt PAL, NTSC, SECAM und andere Video-Formate. Mit einer Höhe von nur 8mm passt er in nahezu jedes Monitor-Design.

Do you have questions about our products?

Please let us know.

HY-LINE AG

+41 52 647 42 00 info@hy-line.ch

DVI Input:

2x DVI bis zu WUXGA

Analog Input:

Analog RGB bis zu WUXGA@60Hz
Alle Farbtiefen bis zu 24bits/Pixel

HDMI Input Features:

Integrierter Multi-Mode HDMI 1.3 Receiver bis zu 1080p
HDCP 1.2a Content Protection mit integrierter Key Storage

DisplayPort Input:

DisplayPort 1.1 compliant Receiver bis zu WUXGA

Video Input

Composite-Video (CVBS)
S-Video
Analog-Komponente Video (YPbPr)

Video-Decoder (integriert):

3D adaptiver Comb Filter
SD-TV (CVBS, S-Video und Analog-Component)
HD-TV (Analog component input only)

De-Interlacing:

DCDi by Faroudja

High Quality Advanced Scaling:

Horizontal & Vertical Zoom/Shrink

Specials:

Separate Onboard Power-Supplies für Flat Panel (bis zu 3A)
High Power Connector für Backlight (bis zu 3.5A)
Möglichkeit der Verbindung des Lichtsensors zur Kontrolle der Backlight Brightness
PWM und spannungsgesteuertes Dimmen
GPIO ist auch konfigurierbar als I2C und PWM-Ausgang
Scripting-Unterstützung
DDC2Bi / VCP (auch via Skript zugänglich)
SerialAPI für verschiedene Einstellungen und Funktionen
SerialOSD für Keypad-less Controlling

Integrated OSD:

On Screen Display (OSD) Control für alle Features

Display-Interface:

JILI30 (bis zu 2x24 Bit Dual-Channel LVDS)
30Bit Dual Channel LVDS via über zusätzlichen Stecker
Output bis zu WUXGA@60Hz (1920x1200)

Formfaktor:

150,01 mm x 89,97 mm x 8 mm

crttolcd-71-lp-ds.pdf

The eCOUNT embedded GmbH develops and manufactures flat display controller boards. They are also proven to be a partner for the procurement of obsolete or difficult to obtain parts.

The eCOUNT CRTtoLCD controller enables the connection of flat panel displays via standard interfaces. Due to its flexibility, the signal format and resolution can be widely adjusted. For optimum system integration, they are equipped with various additional functions:

Display an on-screen display for menu navigation
Easy adjustment of analog, RGB, DVI, video and YUV
Scaling the image format in premium quality
Custom panel files to adapt to almost any TFT display
Effective software tools to configure the operation
Control for dimming the backlight

Our products fit into the most diverse fields of application. If there is no suitable product for you, please ask us, we will also be able to offer you an ideal solution for your field of application.
