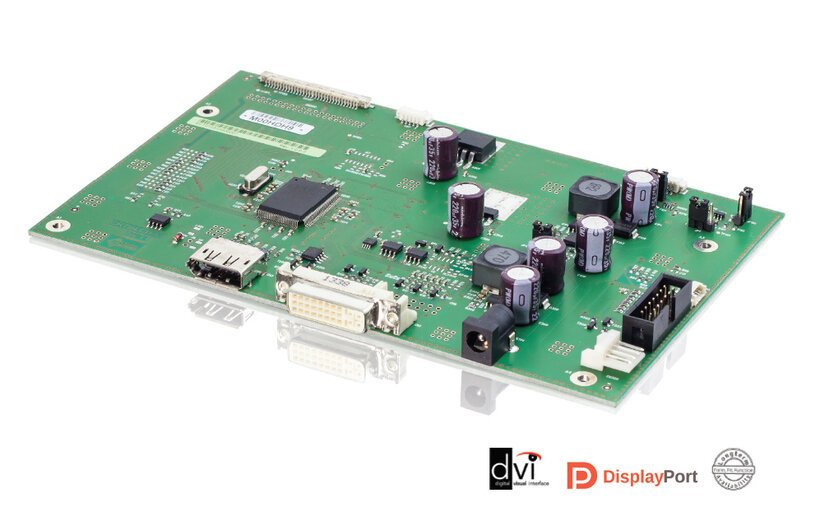

CRTtoLCD-51 Pro
CRTtoLCD TFT-Controller
Der CRTtoLCD-51 Pro ist Teil der neuen Generation von TFT-Controllern aus dem Hause eCount. Der Controller findet Anwendung in einer Vielzahl verschiedener industrieller Applikationen wie POS/POI-Terminals, Gaming Machines, Medizinischen Geräten und weiterem.
DVI-D Input:
- bis zu WUXGA@60Hz (mit Full Zoom & Shrink)
- Analog RGB-Interface via DVI-I bis zu WUXGA@60Hz
- Alle Farbtiefen bis zu 24bits/Pixel
- HDMI 1.3a-konformer Receiver, abwärtskompatibel mit DVI
- On-Chip HDCP Keys
- Integrierter DisplayPort 1.1-konformer Receiver bis zu WUXGA
- Horizontal & Vertical Zoom
- Zwei separate Onboard Power-Supplies für Flat Panel (bis zu 3A und Controller)
- High Power Connector für Backlight (bis zu 4A) für LVDS-Version
- Möglichkeit der Verbindung des Lichtsensors zur Kontrolle der Backlight Brightness (optional)
- On Screen Display (OSD) Control für alle Features
- JILI40/JILI30 (bis zu 2x24 Bit Dual-Channel LVDS)
- Output bis zu WUXGA@60Hz
- 179,07 mm x 119,5 mm x 16,5 mm
The eCOUNT embedded GmbH develops and manufactures flat display controller boards. They are also proven to be a partner for the procurement of obsolete or difficult to obtain parts.
The eCOUNT CRTtoLCD controller enables the connection of flat panel displays via standard interfaces. Due to its flexibility, the signal format and resolution can be widely adjusted. For optimum system integration, they are equipped with various additional functions:
- Display an on-screen display for menu navigation
- Easy adjustment of analog, RGB, DVI, video and YUV
- Scaling the image format in premium quality
- Custom panel files to adapt to almost any TFT display
- Effective software tools to configure the operation
- Control for dimming the backlight
