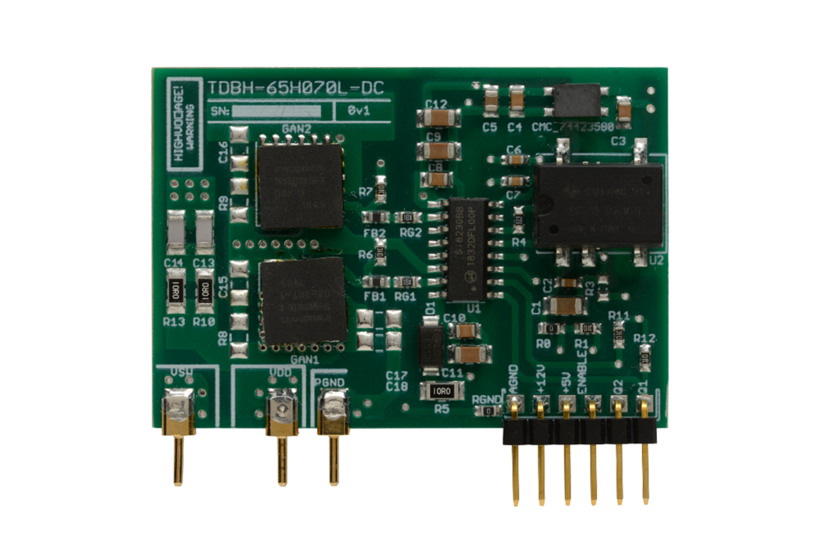

TDHB-65H070L-DC
Evalboard, 1,2kW half-bridge DC/DC
The TDHBG1200DC100 half-bridge evaluation board provides the elements of a simple buck or boost converter, using the Transphorm Daughter Card TDHB-65H070L-DC for basic study of switching characteristics and efficiency achievable with Transphorm’s 650V GaN FETs in the standard 8x8 PQFN package. In either buck or boost mode the circuit can be configured for synchronous rectification. Jumpers allow use of a single logic input or separate hi/lo inputs. The high-voltage input and output can operate at up to 400Vdc, with a power output of up to 1.2kW. The inductor provided is intended for efficient operation at 100kHz, although other inductors and other frequencies may be easily used.
- Daughter board with GaN fets as half bridge equipped with TP65H070L GaN FETs
- is used in Evalboard 1,2W DC/DC Syncronous Buck or Boost demo platform TDHBG1200DC100-KIT
- Demo board for evaluation purposes only!
The expert in GaN semiconductors and especially GaN FET switches. This new technology is particularly suitable for high switching frequencies. It offers significantly lower losses and thus enables more compact devices and better efficiencies.
- Developers have over 300 man-years of experience with GaN for RF and LED applications since 2000, over 340 own patents
- Leader in GaN switches with reverse voltages of 650 V and above
- Extensive portfolio; > 12 billion operating hours and < 1 failure per billion hours in the field
- First JEDEC and AEC-Q101 qualified 650 V devices available on the market
- Own GaN wafer fab
For all Transphorm products there is:
- Application support
- SPICE models
- Development kits
