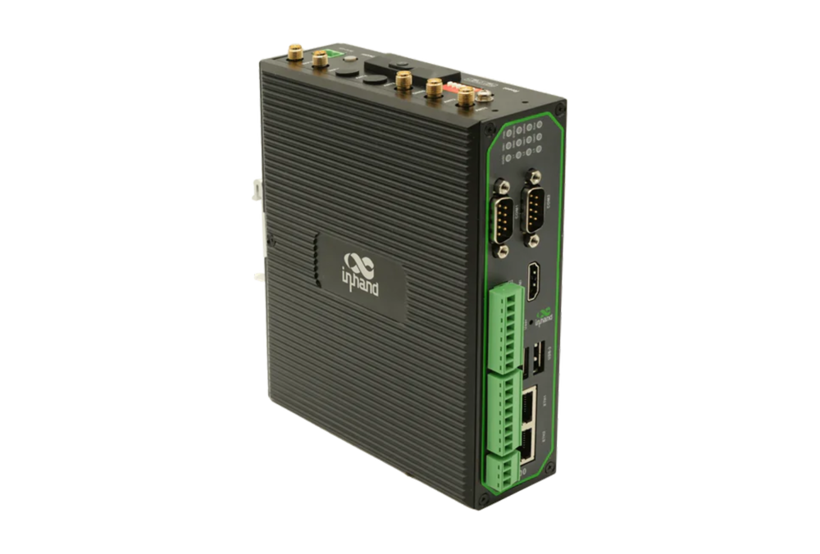

EC942

High-performance AI Accelerated Edge Computer

The EC900 is a high-performance IoT Edge Computer tailored for industrial applications. It boasts a potent ARM Cortex-A55@2.0GHz quad-core processor, 4GB RAM, and 16GB eMMC FLASH. Operating on Debian OS, it provides a versatile development platform supporting C/C++, Java, Python, .Net, and JavaScript. The integrated DeviceSupervisor™ Agent streamlines device provisioning. Security features like Secure Boot and TPM fortify user software and sensitive data. The EC900 ensures top-tier performance, integration, and security for IoT applications.

Do you have questions about our products?
Please let us know.
  • CPU: RK3568, Quad Cortex-A55@2.0GHz
  • GPU: Mali G52 2EE
  • AI Performance: 1.0 TOPS
  • RAM: 4GB on board
  • FLASH: 16/32GB eMMC
  • HDMI: 1*HDMI2.0, up to 4096*2160
  • Cellular: 5G/4G
  • Expansion: mSATA, M.2
  • Ethernet: 2*10/100/1000Mbps
  • Serial: 2*RS-232/485/422, DB9
  • USB: USB 2.0, 2*Type-A, 1*Type-C
  • CAN: 1*CAN FD
  • I/O: 4DI+4DO
  • Wi-Fi: STA, 802.11ac/a/b/g/n, 2.4G/5G
  • Bluetooth: BT 4.2 On board
  • GPS: yes
  • Button: 1*Reset, 1*USER, 1*Power
  • Power Supply Voltage: DC input: unregulated 12V to 48V, Reverse voltage protection
  • Operating Temperature: -20~70°C
  • Operating System: Linux

InHand Networks is a leading global provider of Industrial IoT with headquarters in the USA. InHand serves customers with industrial M2M routers, gateways, industrial Ethernet switches, rugged computers and IoT management platforms.

InHand provides IoT solutions for various vertical markets including Smart Grid, Industrial Automation, Remote Machine Monitoring, Smart Vending, Smart City, Retail and more.
