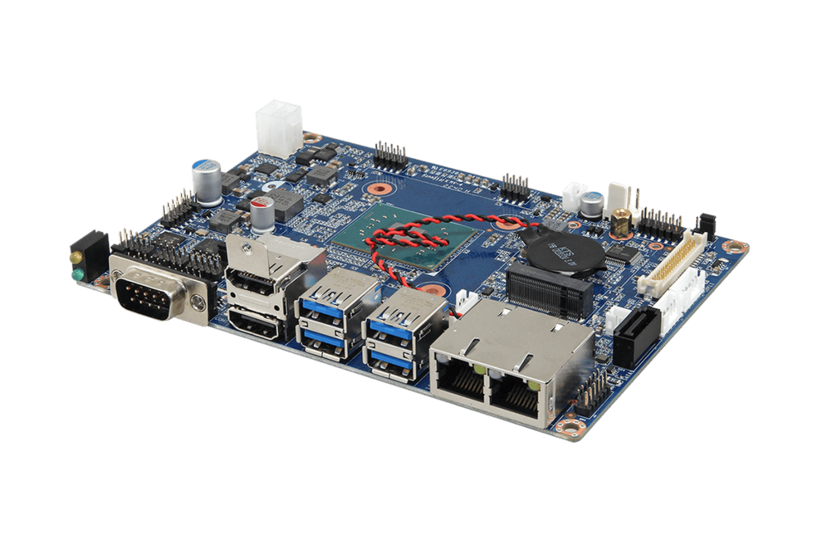

ECM-APL
3.5" Micro Module with Intel® Pentium®/Celeron®/Atom® SoC Processor
- Integrated Intel Pentium /Celeron SoC BGA processor
- 1x 204-pin DDR3L 1866MHz SO-DIMM, supports 4G/8G & up to 8GB DDR3L 1866MTs SDRAM (Non-ECC)
- Triple Display (Dual HDMI, LVDS)
- 1x SATA III, 4x USB 3.0, 1x USB 2.0, 6 COM, 1x Mini-PCIe, 1x M.2, 8-bit GPIO
- System
- Intel Pentium /Celeron /Atom SoC BGA processor
- Chipset: Apollo SoC integrated
- Memory 1x 204-pin DDR3L 1866MHz SO-DIMM, supports 4G/8G & up to 8GB DDR3L 1866MTs SDRAM (Non-ECC)
- BIOS: AMI uEFI BIOS, 128Mbit SPI Flash ROM
- Watchdog timer, H/W status monitor.
- Touchscreen: Built-in touch controller EETI ETP-CP-MER4485XRU (optional)
- Connectors
- 1x Mini PCIe (for PCIe & USB2.0)
- 1x M.2
- 1x USB 2.0
- 4x USB 3.0
- 1x SATA3
- 1x RS-232/422/485
- 5x RS-232
- 1x LPC
- 1x SPI
- 1x Micro SIM card slot
- 1x 8bit GPIO
- Graphics
- Intel Apollo Lake SoC integrated Gen9 LP graphics
- 2x HDMI: Max. Resolution 3840x2160 @30Hz
- 1x LVDS: Max. Resolution 1920x1080 @60Hz
- Triple Display
- Audio
- Realtek ALC892
- supports 5.1-CH
- Mic-In, Line-In, Line-Out
- Ethernet
- 2x Intel I211AT
- Intel I210IT for WT
- 10/100/1000 Base-Tx GbE compatible
- 2x RJ-45
- power consumption: +12V ~ +26V
- Operating temperature: 0°C...60°C (N4200/N3350), -40°C...+85°C (E3900 series)
- Storage temperature: -40°C...+75°C
- Dimensions (L x W): 146mm x 101mm
- Operating systems: Win 10, Linux
Avalue Technology Inc. develops and manufactures industrial computer solutions in Taiwan and internationally. The portfolio includes computer-on-modules, single-board computers, industrial motherboards, embedded, industrial and panel PCs as well as system solutions. HY-LINE distributes the robust products for use in the areas of healthcare, digital signage, transport and gaming. Avalue Technology Inc. was founded in 2000 and is headquartered in New Taipei City, Taiwan.
