Si7006/13/20/21/34
Relative Humidity and Temperature Sensor with I2C Interface

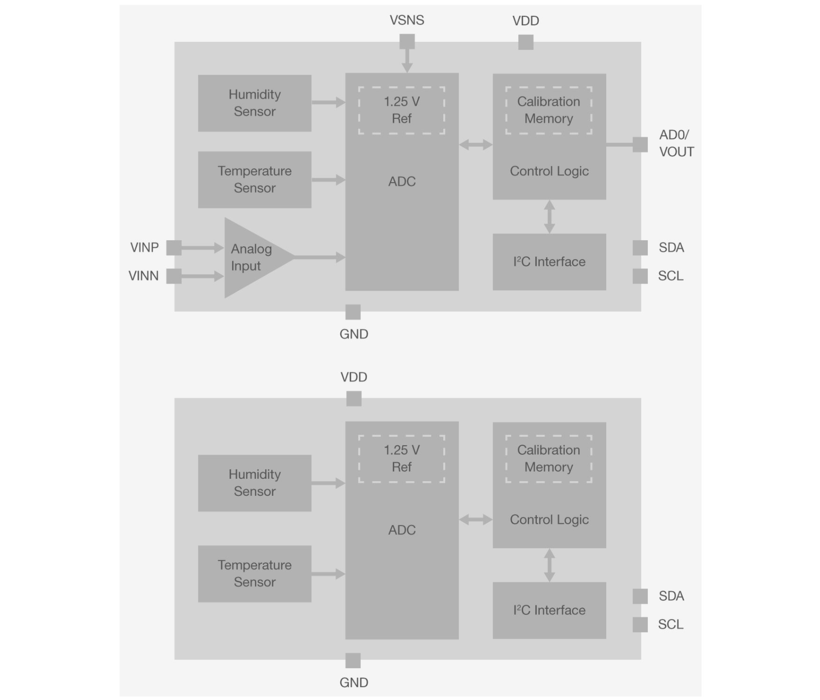

Our Si7006/13/20/21/34 family is our latest generation of I2C relative humidity and temperature sensors. All devices combine fully factory-calibrated humidity and temperature sensor elements with an analog-to-digital converter, signal processing, and an I2C host interface. The Si7013/20/21/34 sensors are designed for high-accuracy applications, while Si7006 is targeted toward lower-accuracy applications traditionally using discrete RH/T sensors.
Featuring innovative CMOS design, these devices offer the lowest power consumption in the industry for a relative humidity and temperature sensor. Patented use of industry-standard low-K polymer dielectrics provides excellent accuracy and long-term stability, along with low drift and low hysteresis.
- Precision Relative Humidity Sensor:
- Si7013/21: ± 3% RH (maximum) @ 0–80% RH
- Si7020/34: ± 4% RH (maximum) @ 0–80% RH
- Si7006: ± 5% RH (maximum) @ 0–80% RH
- Temperature Sensor:
- Si7013/20/21/34: ±0.4 °C accuracy (maximum) @ -10 to +85 °C
- Si7006: ±1.0 °C accuracy (maximum) @ -10 to +85 °C
- 0 to 100% RH operating range
- Up to -40 to +125 °C operating range
- Wide operating voltage range
- Si7006/13/20/21: 1.9 to 3.6 V
- Si7034: 1.67 to 1.98 V
- Low Power Consumption:
- 2.2 µW at 3.3 V, 1 Hz (Si7006/13/20/21)
- 0.9 µW at 1.8 V, 1 Hz (Si7034)
- I2C host interface
- Integrated on-chip heater
- Tiny DFN package
- Si7006/13/20/21: 3x3 mm
- Si7034: 2x2 mm
- Excellent long term stability
- Factory calibrated
- Optional factory-installed filter/cover
- Lifetime protection during reflow and in operation
- Protects against contamination from dust, dirt, household chemicals and other liquids
The manufacturer Silicon Labs from Austin / Texas, specialized in Bluetooth, Bluetooth Smart and Wifi technologies, offers an extensive family of various Bluetooth, Bluetooth Smart and Wifi modules for use in industry, medicine, telemetry, telematics, M2M and mobile systems.
